BME860 does not return humidity or gas-resistance

Hello Bosch-Community,

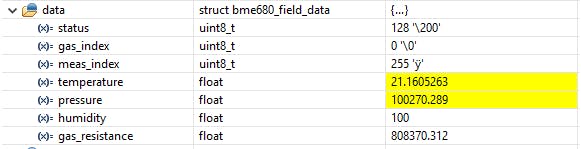

I'm using the BME860 with an STM32 board via I2C. Reading temperature and pressure seems to work fine, as its values seem to make sense.

But neither humidity nor gas_resistance or humidity change. Humidity also is the wrong number, since 100 % relative humidity is a little bit over the tops.

I'm using the code, which is pretty similair to the one in the application note.



float volatile temperature = 0;
float volatile pressure = 0;
float volatile humidity = 0;
float gas_resistance = 0;

struct  bme680_dev  gas_sensor;

gas_sensor.dev_id = BME680_I2C_ADDR_PRIMARY;

gas_sensor.intf = BME680_I2C_INTF;
	gas_sensor.read = bus_read;
	gas_sensor.write = bus_write;
	gas_sensor.delay_ms = HAL_Delay;
	///* amb_temp can be set to 25 prior to configuring the gas sensor
		//* or by performing a few temperature readings without operating the gas sensor.
	//
		//*/
	gas_sensor.amb_temp = 25;


	int8_t volatile rslt = BME680_OK;
	bme680_init(&gas_sensor);




struct  bme680_field_data data;



	uint8_t set_required_settings;

	/* Set the temperature, pressure and humidity settings */
	gas_sensor.tph_sett.os_hum = BME680_OS_2X;//BME680_OS_2X;
	gas_sensor.tph_sett.os_pres = BME680_OS_4X;//BME680_OS_4X;
	gas_sensor.tph_sett.os_temp = BME680_OS_4X;//BME680_OS_4X;
	gas_sensor.tph_sett.filter = BME680_FILTER_SIZE_3;//BME680_FILTER_SIZE_3;

	/* Set the remaining gas sensor settings and link the heating profile */
	gas_sensor.gas_sett.run_gas = BME680_ENABLE_GAS_MEAS;
	/* Create a ramp heat waveform in 3 steps */
	gas_sensor.gas_sett.heatr_temp = 320; /* degree Celsius */
	gas_sensor.gas_sett.heatr_dur = 120; /* milliseconds */

	/* Select the power mode */
	/* Must be set before writing the sensor configuration */
	gas_sensor.power_mode = BME680_FORCED_MODE; //BME680_SLEEP_MODE;//

	/* Set the required sensor settings needed */
	set_required_settings = BME680_OST_SEL | BME680_OSP_SEL | BME680_OSH_SEL | BME680_FILTER_SEL
	| BME680_GAS_SENSOR_SEL;

	/* Set the desired sensor configuration */
	rslt = bme680_set_sensor_settings(set_required_settings,&gas_sensor);

	/* Set the power mode */
	rslt = bme680_set_sensor_mode(&gas_sensor);
while(1)
{
			if (bme680_ticker > 500)
			{
				bme680_ticker = 0;

				HAL_GPIO_TogglePin(LED_0_GPIO_Port, LED_0_Pin);

				rslt = bme680_get_sensor_data(&data, &gas_sensor);
				if(data.status & BME680_GASM_VALID_MSK){
				temperature = data.temperature;
				humidity = data.humidity;
				pressure = data.pressure;
				VOC = data.gas_resistance/1000; //Gasresistance in kohm
				gas_sensor.amb_temp = temperature;
				rslt = bme680_set_sensor_settings(set_required_settings,&gas_sensor);
				}

				if (gas_sensor.power_mode == BME680_FORCED_MODE) {
					rslt = bme680_set_sensor_mode(&gas_sensor);

				}
}

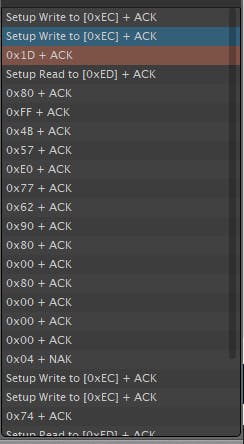

As I was also checking my logic analyzer, but I have no idea why it cannot find any values according to the humidity or gas_resistance.

(One while loop, he retries multiple times)

I'm thankful for any help!



Sincerely Crackl1ng

Best reply by BSTRobin

Hello Crackl1ng,

Attachement is reference code on STM32 for your reference.



referencecode.zip
45.22KB
