BMI160 - Using LSB & MSB or just LSB?

Hey,

I am using Bosch BMI160 sensor for measuring the acceleration and orientation and I am writing an Arduino script for that. In the datasheet the registers for these data are 0x0C - 0x17.

So to get i.e. the x axis of the acceleration in m/s², I multiply my value for acceleration_x with 9,81 and divide it by the sensitivity (for 2g in my case). But my problem is, for the x-axis of acceleration I have an LSB and a MSB (Register 0x12 and 0x13). My question is now, which one do I have to choose? Only reading the LSB? Or do I have to make calculations with both and if yes, how?

Thank you!

Best reply by Nikosant03

Hi,

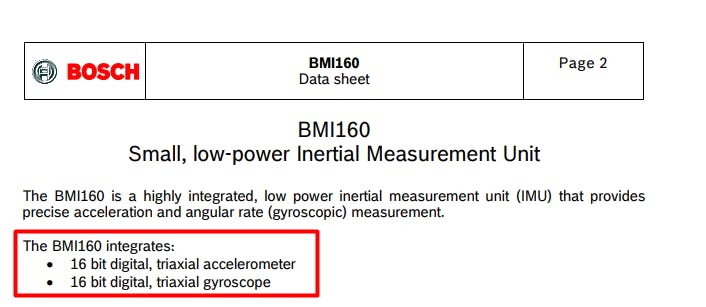

Pg02 of the datasheet says that BMI160 integrates a 16bit digital accel and a 16bit digital gyro

that:

So, you have to read both registers (MSB and LSB) and combine them, something like this:

lsb = data_array[idx++];
msb = data_array[idx++];
msblsb = (int16_t)((msb << 8) | lsb);
accel->x = msblsb; /* Accel data in X axis */

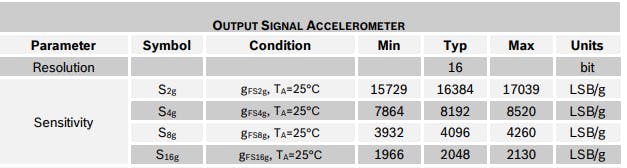

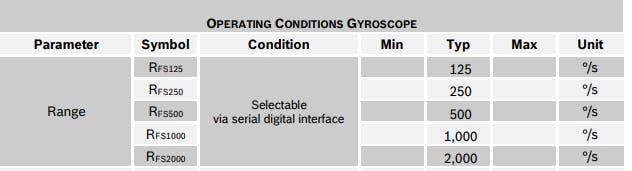

Combining both registers you will get a 16bit number that represents LSBs. Then you just need to convert from LSB to m/s2 or degrees/s (depending by your sensor) following the datasheet

Hope this heps

Nick
