Issue when compare 2 bmi160 data

Hi,

We want to compare 2 bmi160 data to identify some motion feature.

each custom board have the a bmi160 sensor the data readout by spi ,which print by uart.

the firmware part we set both sensor in same config as below



static void Spi_sensor_Sensor_init( void ) {

    /* You may assign a chip select identifier to be handled later */
    s_spi_bmi160_sensor.id = 0 ;
    s_spi_bmi160_sensor.interface = BMI160_SPI_INTF ;
    s_spi_bmi160_sensor.read = Spi_read_transfer ;              //Spi_read_transfer or spi_read
    s_spi_bmi160_sensor.write = Spi_write_transfer ;    //Spi_write_transfer or spi_write
    s_spi_bmi160_sensor.delay_ms = Spi_delay_ms ;

    int8_t rslt = BMI160_OK ;
    rslt = bmi160_init( &s_spi_bmi160_sensor ) ;

    if ( rslt == 0 ) {
            SEGGER_RTT_printf( 0,"bmi160 init success ! \n", rslt ) ;
          } // if
    else
            SEGGER_RTT_printf( 0,"Error : bmi160 init fail ! \n", rslt ) ;

    /* After the above function call, accel_cfg and gyro_cfg parameters in the device
    structure are set with default values, found in the datasheet of the sensor */

    rslt = BMI160_OK ;

    /* Select the Output data rate, range of accelerometer sensor */
    s_spi_bmi160_sensor.accel_cfg.odr = BMI160_ACCEL_ODR_200HZ ;
    s_spi_bmi160_sensor.accel_cfg.range = BMI160_ACCEL_RANGE_2G ;
    s_spi_bmi160_sensor.accel_cfg.bw = BMI160_ACCEL_BW_OSR4_AVG1 ;

    /* Select the power mode of accelerometer sensor */
    s_spi_bmi160_sensor.accel_cfg.power = BMI160_ACCEL_NORMAL_MODE ;

    /* Select the Output data rate, range of Gyroscope sensor */
    s_spi_bmi160_sensor.gyro_cfg.odr = BMI160_GYRO_ODR_200HZ ;
    s_spi_bmi160_sensor.gyro_cfg.range = BMI160_GYRO_RANGE_2000_DPS ;
    s_spi_bmi160_sensor.gyro_cfg.bw = BMI160_GYRO_BW_NORMAL_MODE ;

    /* Select the power mode of Gyroscope sensor */
    s_spi_bmi160_sensor.gyro_cfg.power = BMI160_GYRO_NORMAL_MODE ;

    /* Set the sensor configuration */
    rslt = bmi160_set_sens_conf( &s_spi_bmi160_sensor ) ;

    /* Select the power mode */
    s_spi_bmi160_sensor.accel_cfg.power = BMI160_ACCEL_NORMAL_MODE ;
    s_spi_bmi160_sensor.gyro_cfg.power = BMI160_GYRO_NORMAL_MODE ;

    /*  Set the Power mode  */
    rslt = bmi160_set_power_mode( &s_spi_bmi160_sensor ) ;
    nrf_delay_ms( 10 ) ; // delay_10ms

    /*  Set the calibration value  */
    /*
    rslt = start_foc(&s_spi_bmi160_sensor);
    SEGGER_RTT_printf(0,"foc rslt=%d",rslt);
    */
    struct bmi160_offsets sensor_offset;
    rslt = bmi160_get_offsets(&sensor_offset,&s_spi_bmi160_sensor);
    SEGGER_RTT_printf(0,"calibration value: ax=%d,ay=%d,az=%d,gx=%d,gy=%d,gz=%d\n",sensor_offset.off_acc_x,sensor_offset.off_acc_y,sensor_offset.off_acc_z,sensor_offset.off_gyro_x,sensor_offset.off_gyro_y,sensor_offset.off_gyro_z);

} // Spi_sensor_Sensor_init()


static void Spi_get_data( void ) {
    // get bmi160 raw data
    //define counter
    uint32_t begin = 0;
    uint32_t end = 0;
    //begin = app_timer_cnt_get();
    struct bmi160_sensor_data accel ;
    struct bmi160_sensor_data gyro ;

    int8_t rslt = BMI160_OK ;
    spi_xfer_done = false ;
    rslt = bmi160_get_sensor_data( ( BMI160_ACCEL_SEL | BMI160_GYRO_SEL | BMI160_TIME_SEL), &accel, &gyro, &s_spi_bmi160_sensor ) ;
      if ( rslt != 0 )
              SEGGER_RTT_printf(0, "ERROR : get bmi160 data fail !" ) ;
    nrf_delay_ms( 5 ) ; // delay_5ms

    s_spi_ori_data[ 0 ] = accel.x ;
    s_spi_ori_data[ 1 ] = accel.y ;
    s_spi_ori_data[ 2 ] = accel.z ;
    s_spi_ori_data[ 3 ] = gyro.x ;
    s_spi_ori_data[ 4 ] = gyro.y ;
    s_spi_ori_data[ 5 ] = gyro.z ;

   SEGGER_RTT_printf(0,"ax = %d, ay = %d, az = %d,gx = %d, gy = %d, gz = %d\n", accel.x, accel.y, accel.z, gyro.x, gyro.y, gyro.z) ;
   SEGGER_RTT_printf(0,"ACC and Gyro SensorTime= %u \n",accel.sensortime);

} // Spi_get_data()

int main(void){

        //Spi_init();
        Spi_pin_init();
        Spi_sensor_Sensor_init();

        while(1)
        {
            Spi_get_data();
        }
}



We fix the 2 board on the same place and move in the same way to record the data.

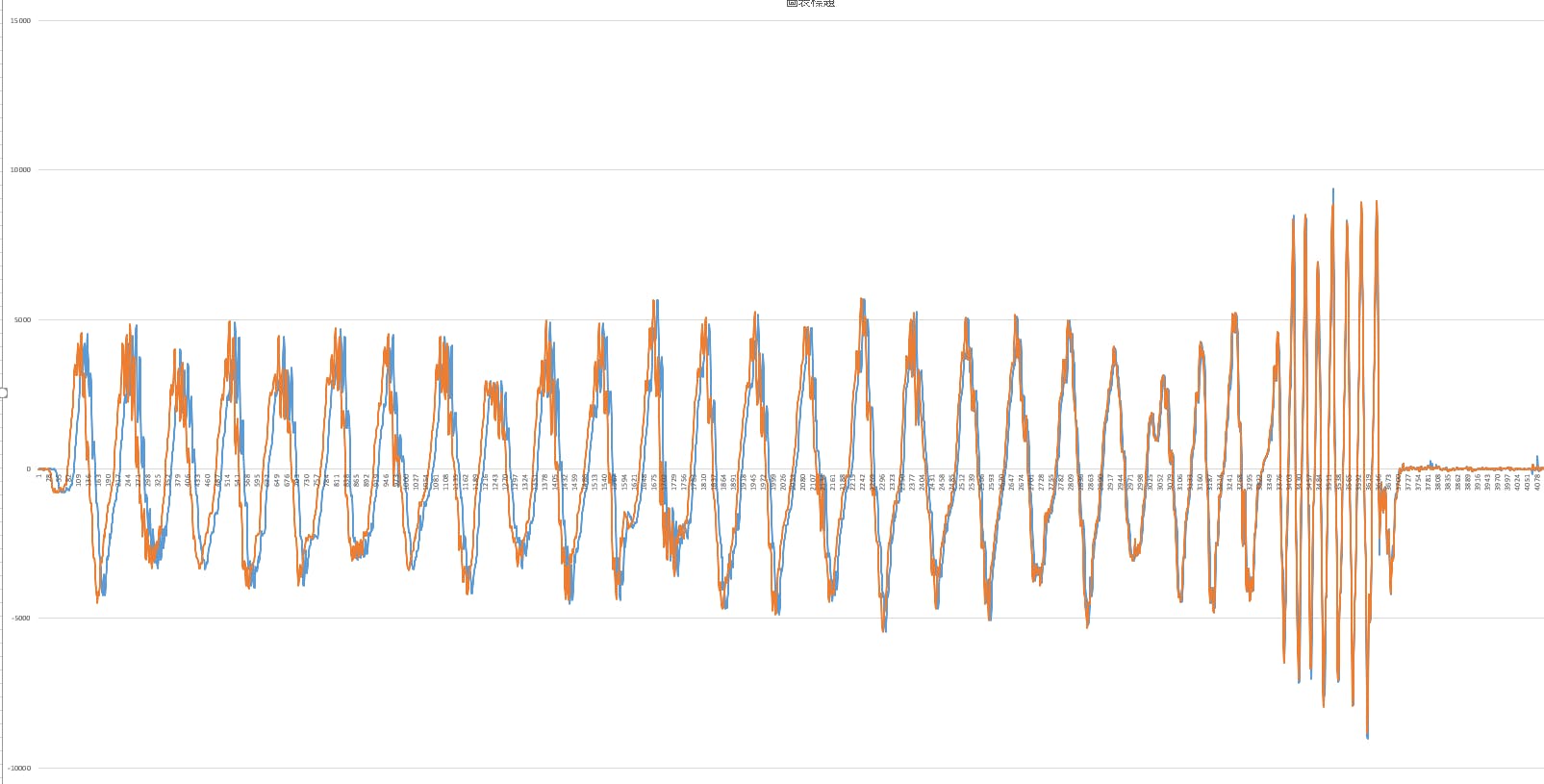

the pic above  x (index)/y (gyro.z), we can see the raw data difference grows over time.

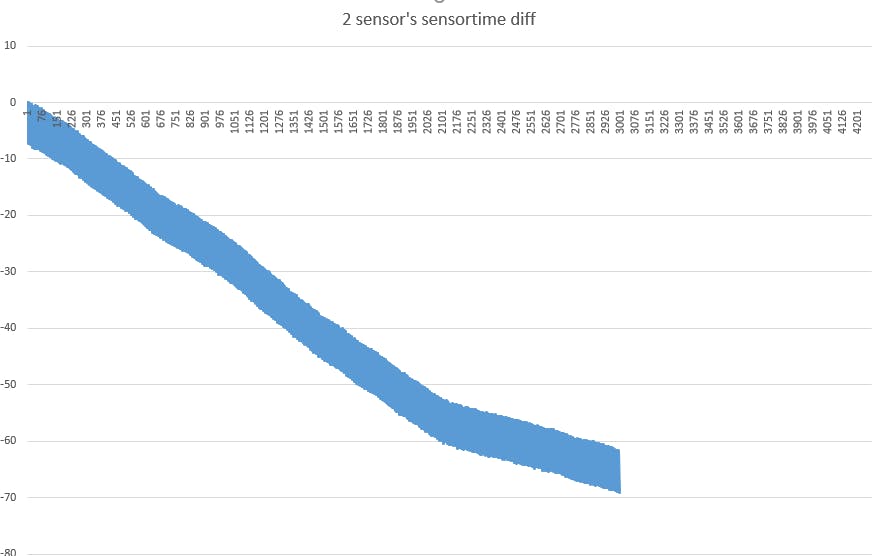

when we align two sensortime(ms) in the same point, we find  the sensortime difference also grows over time.

how can we config our system to make sure to avoid this issue?

Any suggestion?

the raw data is in the appendix.

data compare.xlsx
449.29KB
Best reply by BSTRobin

Hello TTN,

Different sensor maybe have different accuracy of ODR , therefor sensor data maybe not in full accord at same time.

View original
7 replies
Resolved
